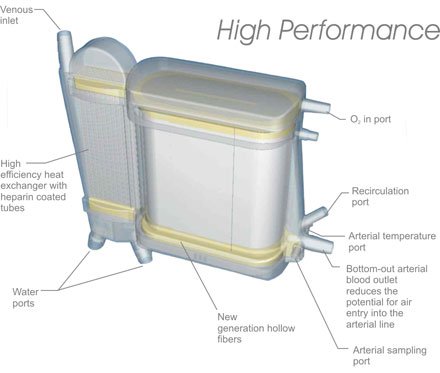

Membrane Oxygenator:

Specifications:

• Blood Flow Rate: 1 to 7 L/min.
• Static Priming Volume: 290 ml
• Membrane: Microporous Polypropilene Hollow Fiber
• Membrane Surface Area: 1.9 m²
• Blood Inlet Port: 3/8"
• Blood Outlet Port: 3/8"
• Blood Access Port: 1/4''
• Gas Inlet and Outlet Ports: 1/4''
• Water Ports: 1/2'', quick disconnect

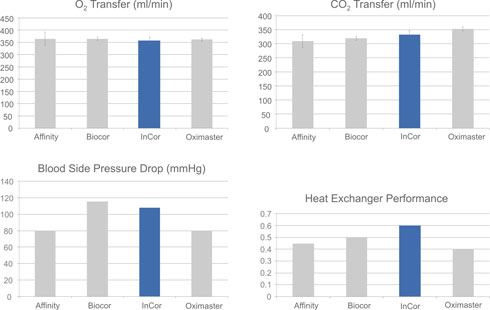

Data obtained in laboratory testing. Test Conditions: 37 °C, Hb:12%, venous O2 saturation: 65%, pCO2: 45 mmHg, pH: 7,35-7,45, blood flow: 6,0 L/min, gas flow: 6,0 L/min.
